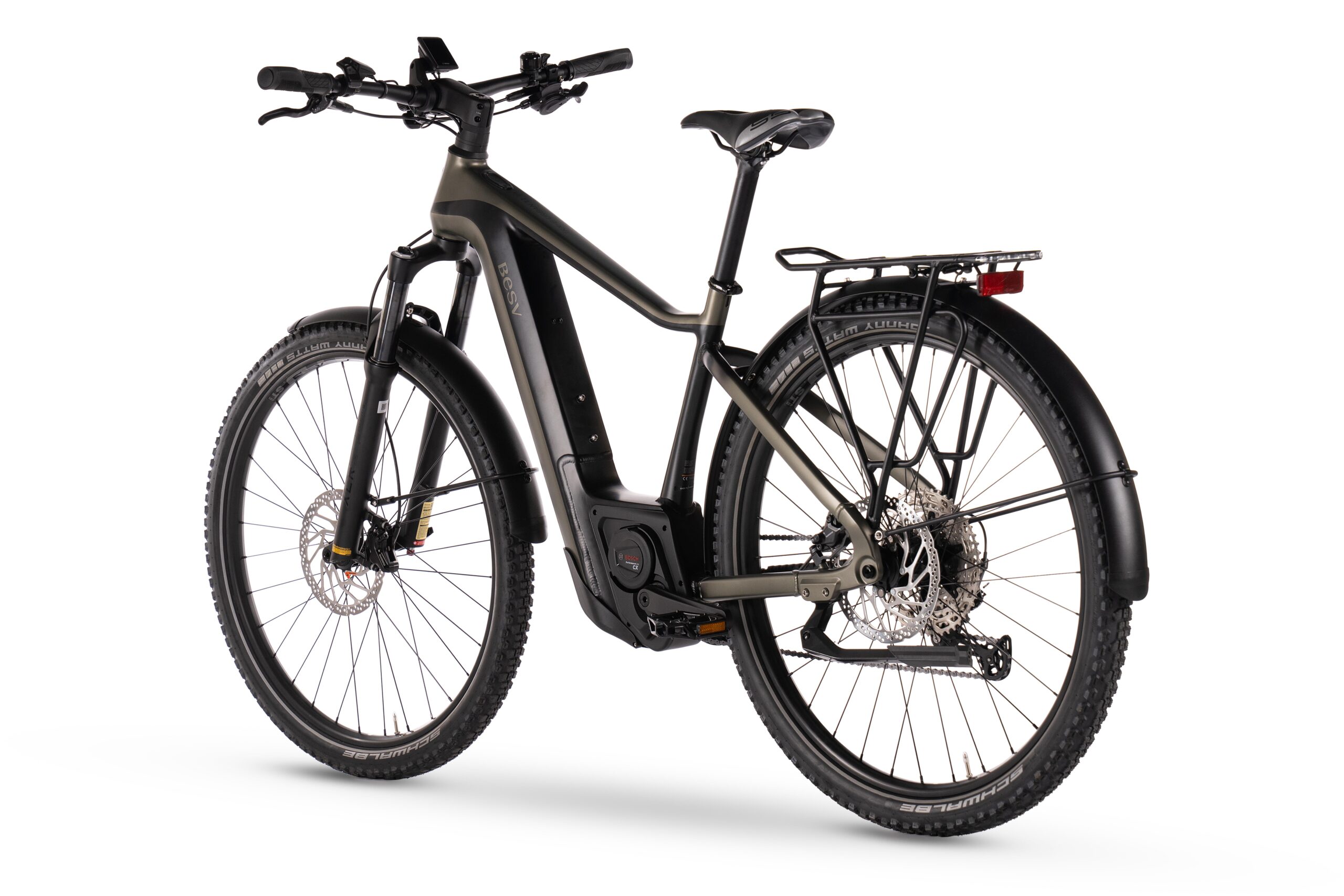

TRX-B HYBRID SUV 1.1

The TRX-B Urban 1.1 is a perfect blend of urban style and trail-ready features. Designed with a hardtail BESV TRX Series smooth welded alloy frame. The bike is powered by a Bosch Performance CX motor, which offers a rated power of 250W and a torque of 85Nm. The Shimano Deore 12-speed rear derailleur, ensures smooth and efficient gear shifting. The bike is equipped with a Bosch Power Tube 750 Wh slider battery, ensuring long rides without frequent recharges. The SR Suntour fork with 34mm stanchions and a travel of 120mm ensures a comfortable ride on both city streets and rough terrains.

TAILLE

S (42.5cm)| M (46cm)| L (49cm)

La couleur

Metallic khaki with black satin

PRIX

€4.999,00

OÙ ACHETER

MATERIEL

Aluminum Alloy 6061

SUSPENSION

120MM

BATTERIE

750WH

PNEUS

29 x 2.35

DESCRIPTION

The TRX-B Urban 1.1 is a perfect blend of urban style and trail-ready features. Designed with a hardtail BESV TRX Series smooth welded alloy frame. The bike is powered by a Bosch Performance CX motor, which offers a rated power of 250W and a torque of 85Nm. The Shimano Deore 12-speed rear derailleur, ensures smooth and efficient gear shifting. The bike is equipped with a Bosch Power Tube 750 Wh slider battery, ensuring long rides without frequent recharges. The SR Suntour fork with 34mm stanchions and a travel of 120mm ensures a comfortable ride on both city streets and rough terrains.

    • Bosch Performance CX Motor with 85 Nm of Torque
    • 750 Wh Long-lasting Battery
    • Shimano Deore 12-speed Rear Derailleur

Specifications

FRAMESET

FRAME

Hard-tail BESV TRX-B Series smooth welded alloy frame, Bosch motor and internal battery compatible

COLOR(S)

Metallic khaki with black satin

SIZES

S (42.5cm), M (46cm), L (49cm)

FORK

SR Suntour XCR34, 34mm stanchions, Lockout, Air damping, 1 1/8"-1.5" tapered alloy steerer, travel 120mm

REAR CARRIER

Tubular aluminium carrier, with MIK-HD platform and spring clamp, H-Cargo rear light mount

FENDERS

Alloy extruded fenders, front & rear 3/4 length, stainless steel hardware

DRIVETRAIN

MOTOR

Bosch Perf CX BES3/GEN4 (85Nm)

BATTERY

Bosch Power Tube 750 Wh, with 4A charger

DISPLAY

Bosch Kiox with LED display and Bluetooth connectivity

REAR DERAILLEUR

Shimano Deore RD-M6100, 12 speed

CASSETTE

Shimano Deore CS-M6100, 12 speed, 10-51T

CHAIN

KMC e12Turbo, with Quick-Link

CRANKSET

Samox for Bosch, 38T chainring

BOTTOM BRACKET

Bosch, integrated in motor

COCKPIT

HANDLEBAR

E-MTB rizer bar, 6066 alloy, 4mm rise, sweep: 7° back, 31.8mm clamp

STEM

3D Forged alloy City-Trekking stem, SP-Connect mount, 31.8mm clamp, integrated cable routing

HEADSET

Acros, AZX-581, 1.5" headset, angular contact bearings, integrated cable routing

GRIPS

E-MTB gel grips with padding and BESV clamp

SHIFTERS

Shimano Deore SL-M6100, 12 speed

SADDLE

Selle Italia S5 Superflow

SEATPOST

Promax SP-726, 31.6mm diameter

PEDALS

Wellgo, alloy body, ball bearings

WHEELS

WHEEL SET

Shimano HB-TC500-15-B front hub and MT-410B rear hub, Boost hubs spacing, WTB STi27 29" multichamber alloy rims 32H

TIRES

Schwalbe Johnny Watts, 29×2.35", Addix, Race Guard, 67 TPI wire bead with reflective stripe

Les spécifications sont sujettes aux erreurs..

DÉCOUVRIR LES FONCTIONNALITÉS

GÉOMÉTRIE

sml
Hauteur du cavalier163-176 cm174-188 cm185-197 cm
1. Longueur du tube supérieur616630650
2. Portée du cadre422428449
3. Empilement539539539
4. Hauteur du standover705739759
5. Empattement116611741194
6. Longueur du tube de direction130130130
7. Tube de tête Ange68°68°68°
8. Angle du tube de selle74°73°73°
9. Longueur du tube de selle425490490
10. Longueur de la base460460460
11. Chute de BB705555
