BESV PREMIUM E-BIKE

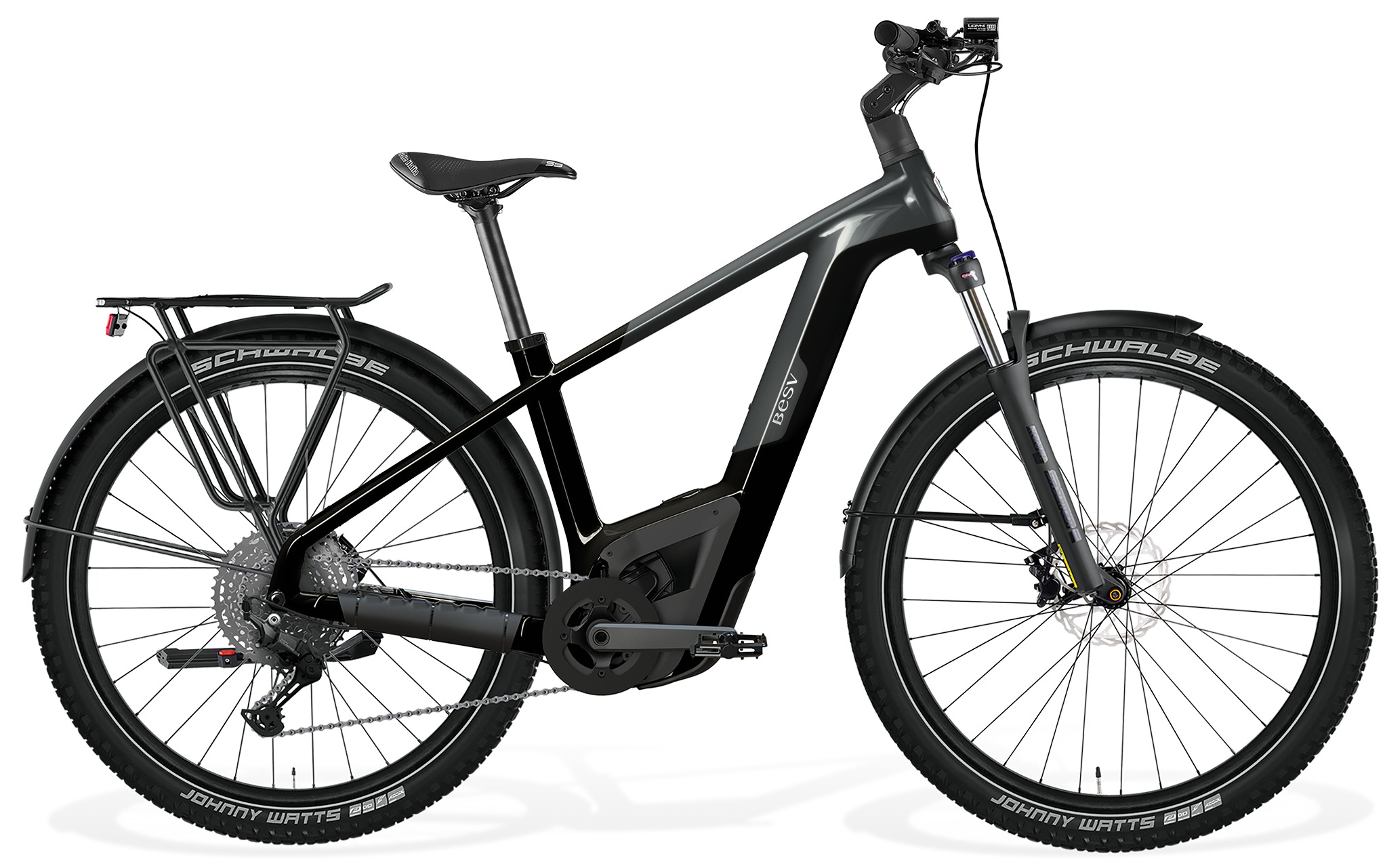

TRX-B SUV LTD

Adventure Refined.
The TRX-B SUV LTD combines mountain bike strength with city-ready comfort. Powered by the Bosch Performance CX motor and equipped with SHIMANO Cues 11-speed shifting, it’s built for daily rides, weekend escapes, and everything in between. The 100mm front suspension and MIK HD rear carrier add utility and control. With a 140kg gross weight capacity, it’s your go-anywhere electric SUV bike.

SIZE

S (42.5cm)| M (46cm)| L (50cm)

COLOR

Mid Gray with Black Gloss

PRICE

1 619 595.00 Ft

FRAME OPTIONS

Male
WHERE TO BUY

MATERIAL

Alloy 6061

SUSPENSION

100mm

BATTERY

750WH

TIRES

29 x 2.35

DESCRIPTION

Adventure Refined.
The TRX-B SUV LTD combines mountain bike strength with city-ready comfort. Powered by the Bosch Performance CX motor and equipped with SHIMANO Cues 11-speed shifting, it’s built for daily rides, weekend escapes, and everything in between. The 100mm front suspension and MIK HD rear carrier add utility and control. With a 140kg gross weight capacity, it’s your go-anywhere electric SUV bike.

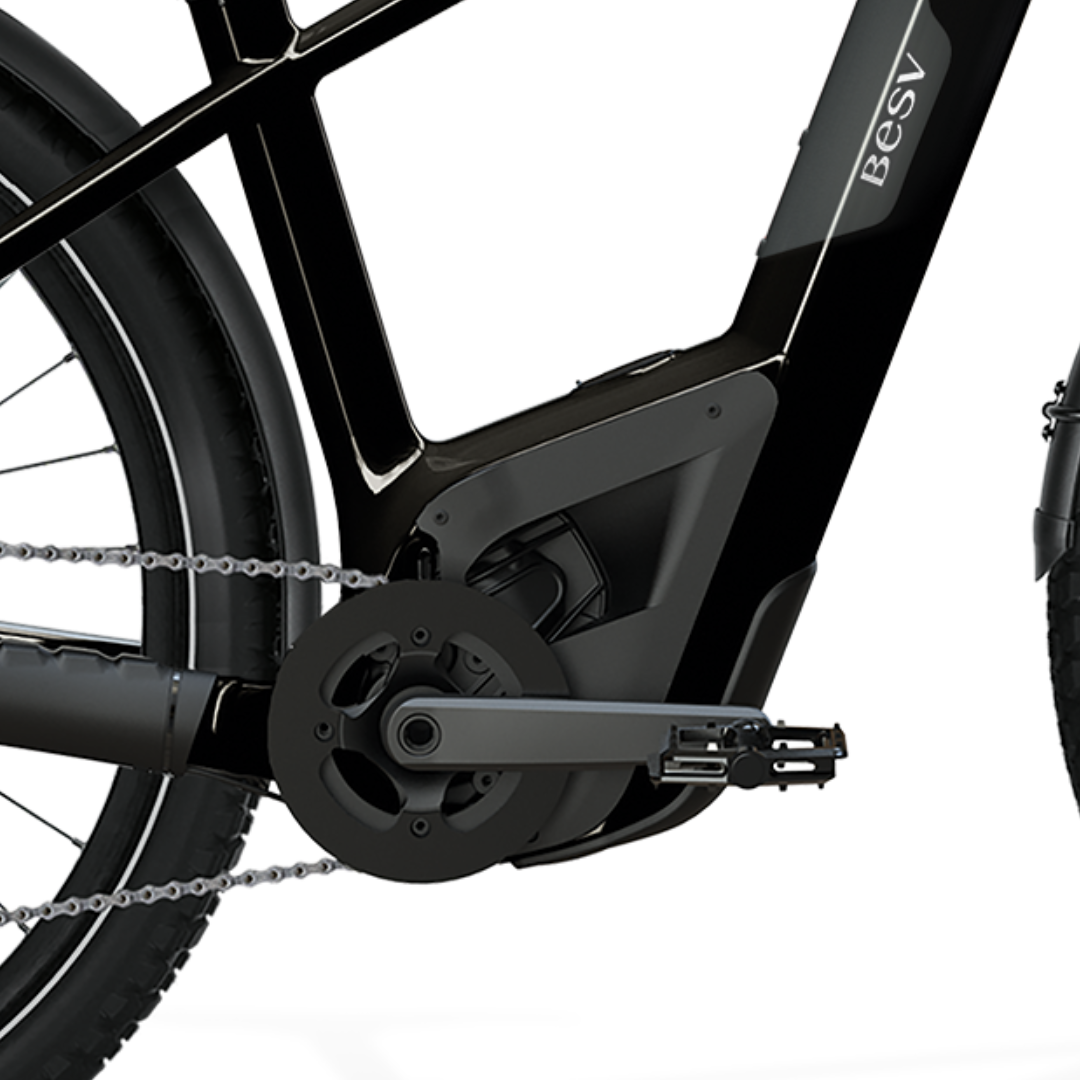

    • Bosch Performance CX Motor, 250W, 85Nm Torque
    • 750Wh Bosch PowerTube Battery

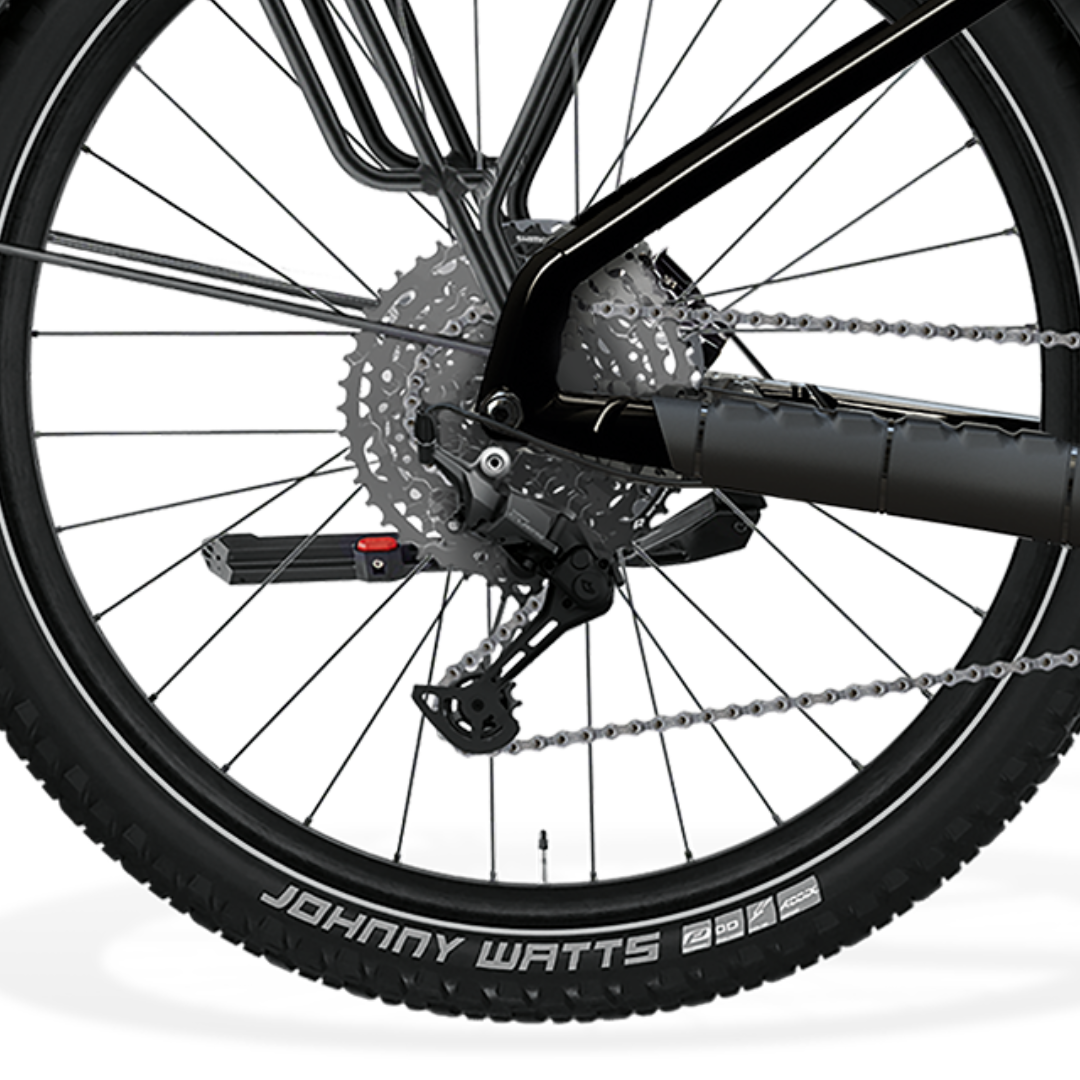

    • SHIMANO CUES 11-Speed Derailleur
    • 100mm Suspension Travel

Specifications

FRAMESET

FRAME

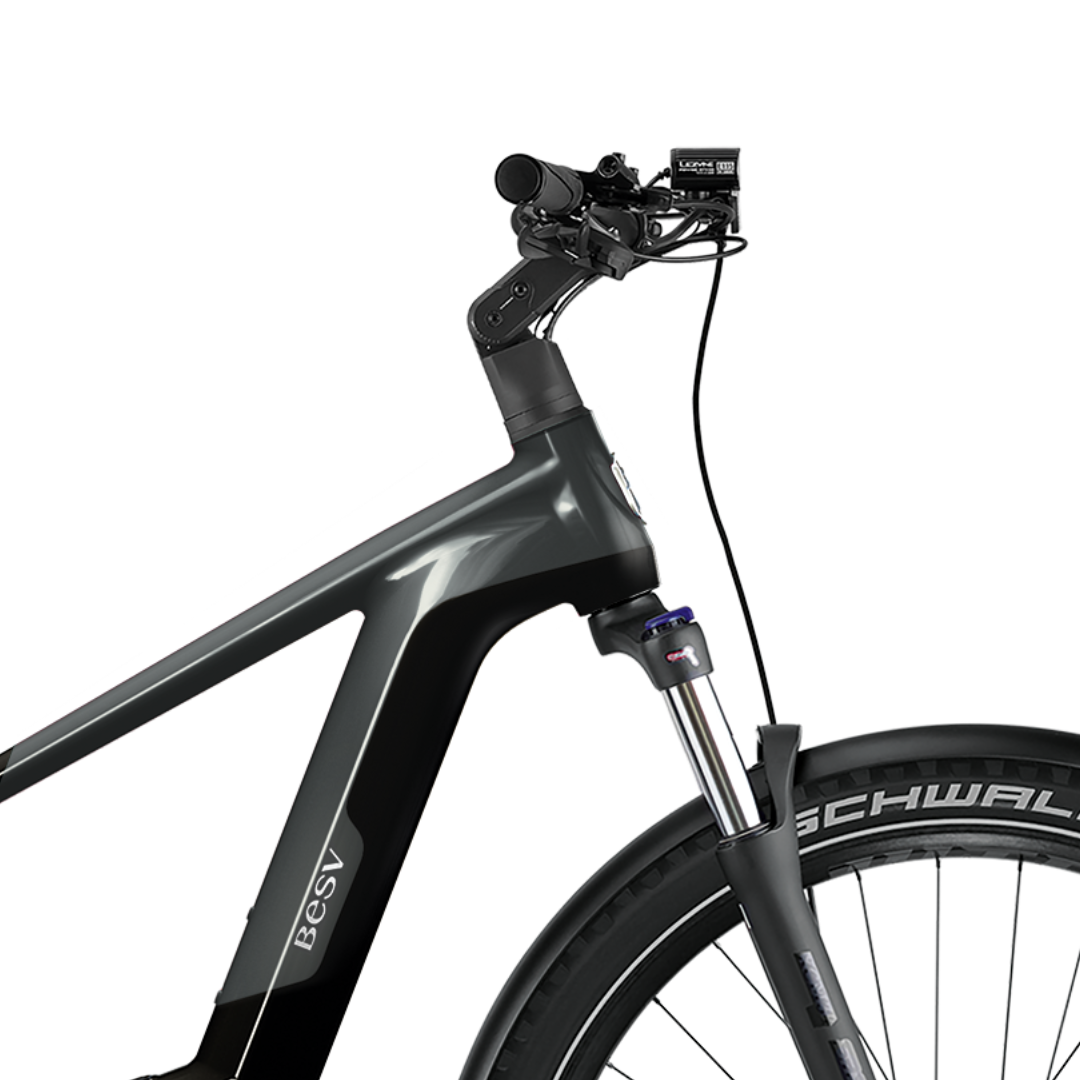

BESV TRX-B Series, smooth welded alloy frame, Bosch eBike system compatible

COLOR(S)

Mid gray with black gloss

SIZES

S (42.5cm), M (46cm), L (50cm)

FORK

SR Suntour XCM34, 34mm stanchions, Coil damping, Lockout, 1.1/8"-1.5" tapered alloy steerer, 100mm travel, Thru-axle

REAR CARRIER

Tubular aluminium carrier, with MIK HD platform and spring clamp

FENDERS

SKS PET fenders, aluminium hardware

DRIVETRAIN

MOTOR

Bosch Performance CX Gen.5, 100Nm, 250W

BATTERY

Bosch PowerTube 750Wh, 4A charger

DISPLAY

Bosch Kiox 300, color LED display and Bluetooth connectivity

REAR DERAILLEUR

SHIMANO CUES, RD-U6000, 11 speed

CASSETTE

SHIMANO CUES, CS-LG400, 11 speed, 11-50T

CHAIN

SHIMANO CN-LG500, with Quick-Link

CRANKSET

Samox for Bosch, 34T chainring

BRAKESET

SHIMANO MT420/MT410, 4/2-piston hydraulic disc, 2 finger lever, 203mm and 180mm rotor

COCKPIT

HANDLEBAR

E-MTB rizer bar

STEM

Alloy City-Trekking stem, SP-Connect mount, adjustable 0-90°

HEADSET

Acros, integrated cable routing

GRIPS

E-MTB gel grips with padding and BESV clamp

SHIFTERS

SHIMANO CUES, SL-U6000, 11 speed

SADDLE

Selle Italia S5 Superflow

SEATPOST

Promax SP-726

PEDALS

Wellgo, alloy body, ball bearings

WHEELS

WHEEL SET

SHIMANO TC500-15-B, MT400-B, Boost hubs spacing, WTB STi27 29" multichamber alloy rims 32H

TIRES

Schwalbe Johnny Watts, 29x2.35", Addix, Race Guard, 67 EPI

ACCESSORIES

ADJUSTABLE KICKSTAND

Adjustable kickstand

HEADLIGHT

Lezyne eBike Power E115, 115 lux, with reflector

TAILLIGHT

Herrmans H-Cargo, with reflector

LOCK

Abus battery key-lock

Specifications are subject to errors.

Discover features

TRX-B SUV LTD (MY25)

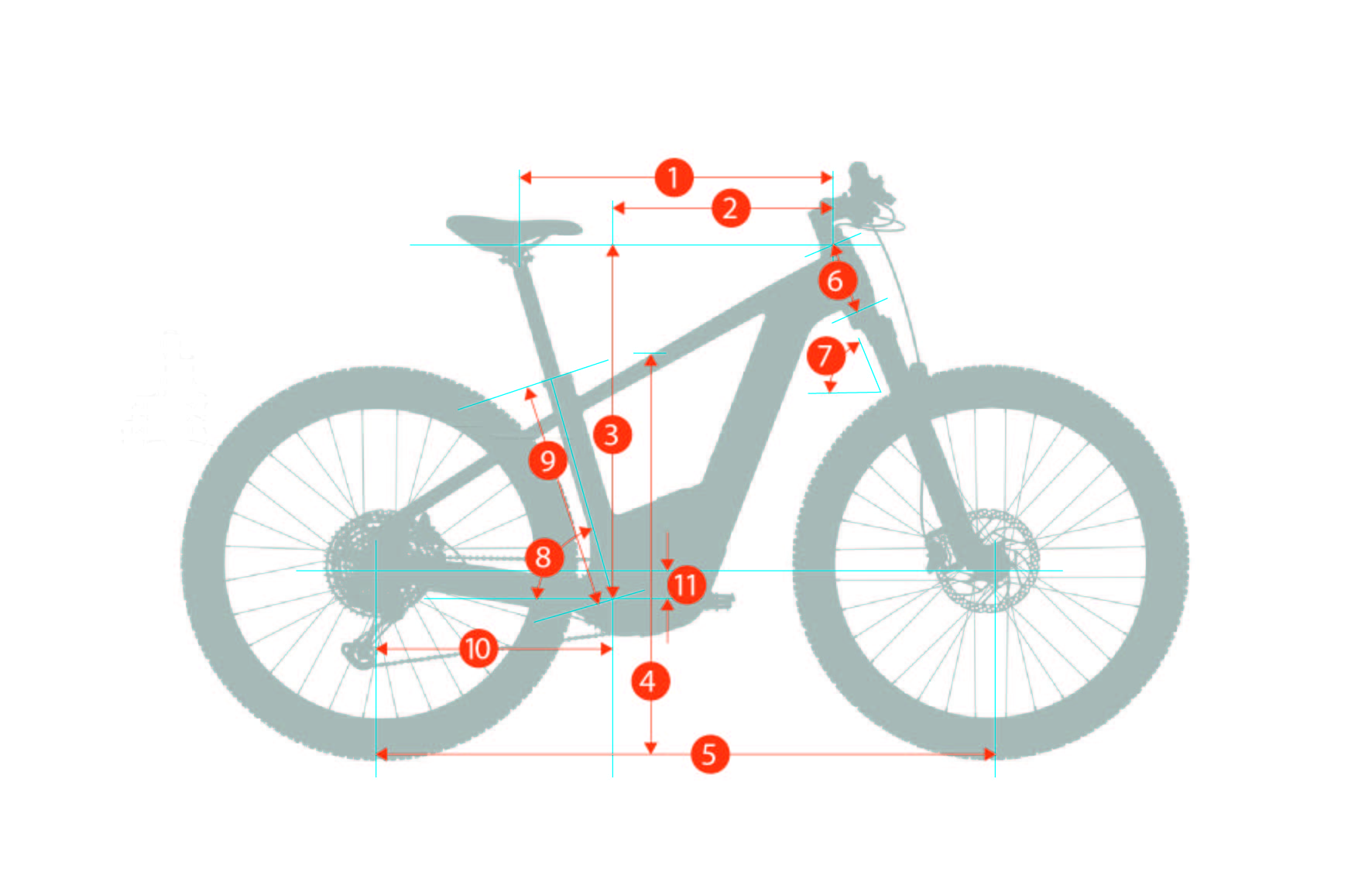

Geometry

sml
Rider Height163-176 cm174-188 cm185-197 cm
1. Top Tube Length607614632
2. Frame Reach408415430
3. Stack694694703
4. Stand over height507504502
5. Wheel Base115811651184
6. Head Tube Length170180190
7. Head Tube Angle68°68°68°
8. Seat Tube Angle74°74°74°
9. Seat Tube Length425460500
10. Chainstay Length450450450
11. BB Drop555555
