BESV PREMIUM E-BIKE

CT-B 1.0 LS

Silent Stunner.
The CT-B 1.0 LS is smooth, strong, and space-age sleek. With its low-step frame and quiet belt drive, it turns every commute into effortless motion. Powered by the Bosch Performance PX Gen 5 motor and an 800Wh battery, you’ll reach up to 150km on a single charge*. A hidden charging port, 63mm front suspension, and 160kg weight capacity make it as practical as it is polished. Your everyday shuttle, ready for lift-off.
*Range depends on multiple factors.

SIZE

S (47cm) | M (52cm) | L (56cm)

COLOR

Metallic brass with black gloss

PRICE

€4.499,00

WHERE TO BUY

MATERIAL

Aluminum Alloy 6061

SUSPENSION

63MM

BATTERY

800WH

TIRES

700×50

DESCRIPTION

Silent Stunner.
The CT-B 1.0 LS is smooth, strong, and space-age sleek. With its low-step frame and quiet belt drive, it turns every commute into effortless motion. Powered by the Bosch Performance PX Gen 5 motor and an 800Wh battery, you’ll reach up to 150km on a single charge*. A hidden charging port, 63mm front suspension, and 160kg weight capacity make it as practical as it is polished. Your everyday shuttle, ready for lift-off.
*Range depends on multiple factors.

    • Extra Power for Everyday Use | Bosch Performance PX Motor | 90Nm Torque
    • 800Wh Bosch PowerTube for Longer Rides
    • Low, Easy Step-Through Frame
    • 160kg Gross Weight Allowance

Specifications

FRAMESET

FRAME

BESV CT-B 1.Series, smooth welded alloy frame, Bosch eBike system compatible, Gen.5 motor mount

COLOR(S)

Metallic brass with black gloss

SIZES

S (47cm), M (52cm), L (56cm)

FORK

SR Suntour NVX32, Lockout, Coil damping, tapered alloy steerer, 63mm travel, Thru-axle

REAR CARRIER

Standwell, with MIK HD platform and spring clamp

FENDERS

SKS PET A65R fenders

DRIVETRAIN

MOTOR

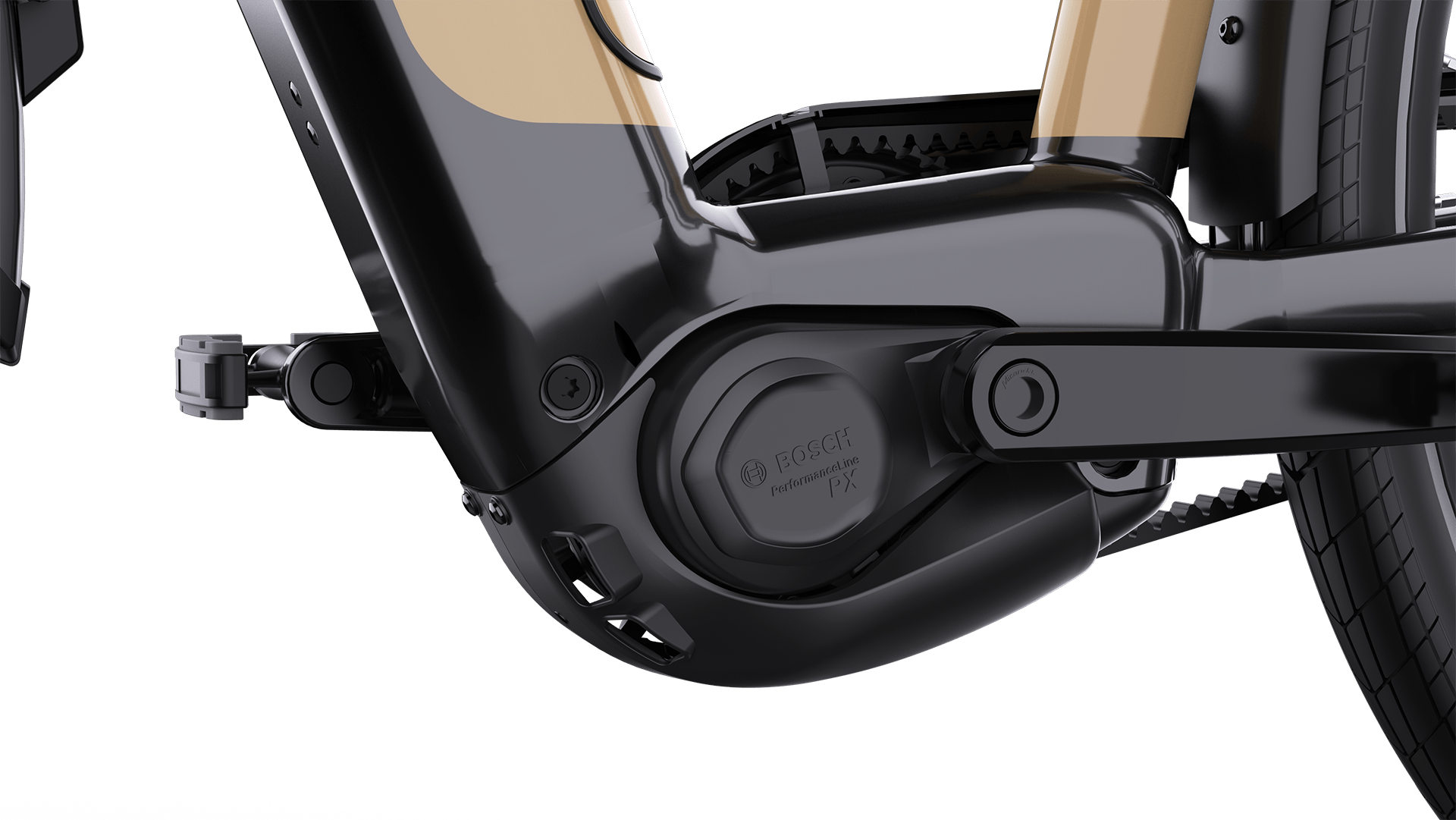

Bosch Performance PX Gen.5, 90Nm, 250W

BATTERY

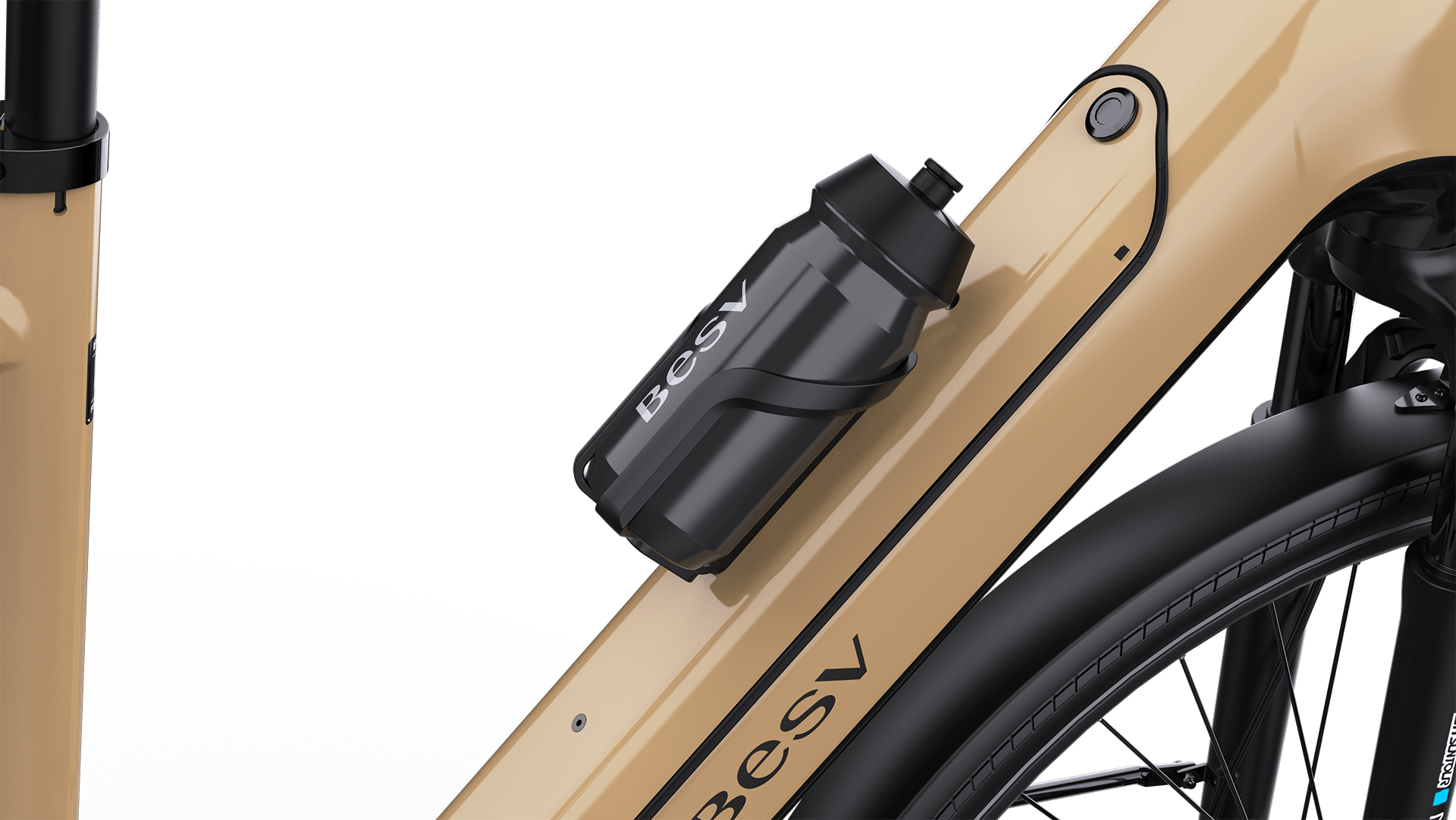

800Wh Bosch PowerTube, 4A charger

DISPLAY

Bosch Intuvia 100, LED, Bluetooth

REAR DERAILLEUR

SHIMANO Nexus 5

CASSETTE

Gates CDX for Nexus 5 / 24T

CHAIN

Gates CDX belt / 128T

CRANKSET

Gates CDX Spider 46T / Samox for Bosch crank arms

BRAKESET

SHIMANO MT410, 2-piston hydraulic disc, 3 finger lever, 180mm rotors

COCKPIT

HANDLEBAR

Alloy City-Trekking rise bar

STEM

Alloy City-Trekking stem, SP-Connect mount, adjustable 0-90°

HEADSET

Token, integrated cable routing

GRIPS

Comfortable gel grips with padding

SHIFTERS

Enviolo manual

SADDLE

Selle Royal Orbis

SEATPOST

Suspension seatpost with anti-sideplay, 40mm travel

PEDALS

Wellgo pedals with reflectors

WHEELS

WHEEL SET

SHIMANO HB-TC500-15, Nexus 5, WTB ST i25 700c multichamber alloy rims 36H

TIRES

Schwalbe Energizer Plus, 50×622, Addix E, Twin Skin, 67 TPI wire bead with Green Guard protection, reflective stripe

ACCESSORIES

ADJUSTABLE KICKSTAND

Adjustable kickstand, Chainguard

HEADLIGHT

Lezyne eBike Power E115, 115 lux, with reflector

TAILLIGHT

Sate-Lite M15, with deceleration sensor

LOCK

Abus battery key-lock and rear wheel lock

WEIGHT

BIKE WEIGHT(incl. battery)

30.5kg

PERMISSABLE WEIGHT

160KG

Specifications are subject to errors.

Discover features

CT-B 1.0 LS (MY26)

Geometry

sml
Rider Height164-175 cm175-188 cm187-198 cm
1. Top Tube Length605609619
2. Frame Reach390394404
3. Stack702.17702.17702.19
4. Stand over height365.38365.89365.87
5. Wheel Base1172.41176.41186.5
6. Head Tube Length200200200
7. Head Tube Angle70°70°70°
8. Seat Tube Angle76.5°76.5°76.5°
9. Seat Tube Length470520560
10. Chainstay Length510510510
11. BB Drop707070

what's your size

Downloads

NAME TYPE DATE FILE
BATTERY PDF 17/10/2025
BRAKESET PDF 17/10/2025
CHARGER PDF 17/10/2025
DRIVE UNIT PDF 17/10/2025
FORK PDF 17/10/2025
INTERNAL GEAR HUB PDF 17/10/2025
SHIFTER LEVER PDF 17/10/2025
Declaration of Conformity PDF 24/10/2025
